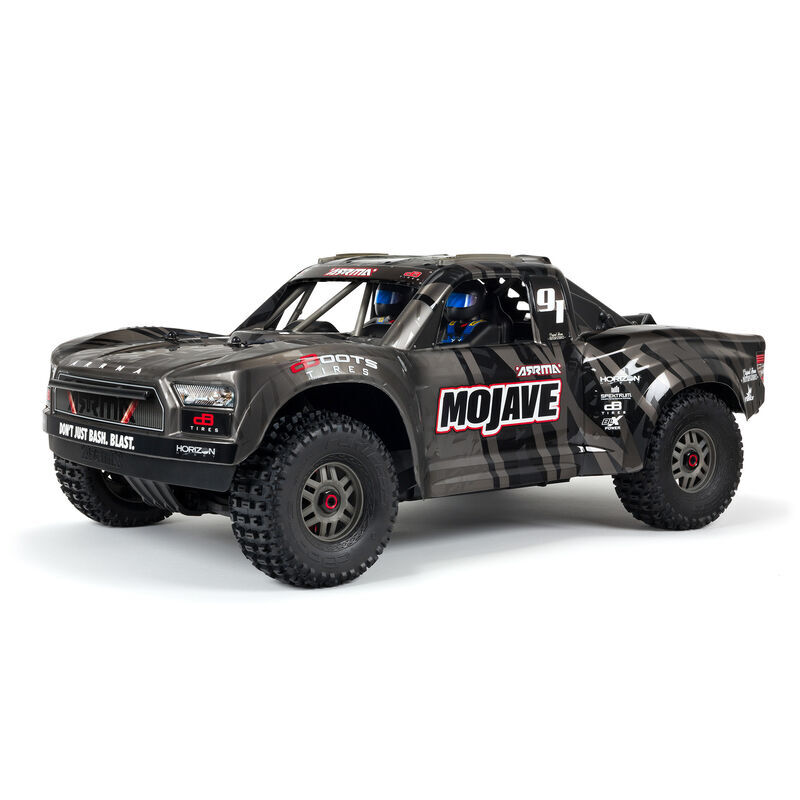

ARA7204 | Arrma Mojave eXtreme Bash (EXB) 1/7 Desert Racer, Rolling Chassis
Features
- 7075 T6 Aluminium laser-etched chassis plate
- Anodized aluminium front and rear chassis braces
- Centre brace for maximum durability
- Aluminium front upper hanger and top plate
- EXB Anodized aluminium servo mount
- EXB Large volume waterproof* receiver box
- Strong composite chassis side pods
- Heavy-duty front and rear suspension arms with aluminium strengthening cap
- Independent suspension for superior handling
- Steel rear suspension mounts
- EXB Heavy-duty steel turnbuckles
- EXB Heavy-duty front upper steel hinge pins
- Oil-filled adjustable shocks
- 7075 T6 Anodized aluminium shock towers front and rear
- Heavy-duty drivetrain
- Durable steel driveshafts
- All-metal diff outdrives and gearbox internals
- Limited-slip differentials front and centre
- SAFE-D input gears
- EXB Plated limited slip differential
- Exclusive EXB matte and gloss effect body
- Realistic cockpit detail and ultra-detailed decals
- Centre roll hoop interfaces with body roll cage for enhanced body durability
- Nerf bars for body and side impact support
- Realistic front and rear bumper protection
- Flexible front bumper valance
- Super-durable wheel hubs for increased strength
- Colour-coordinated multi split-spoke wheels
- Multi-terrain vented dBoots® FORTRESS™ tyres
- 2-year limited warranty
Product Information
Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale, 6S capable MOJAVE™ EXtreme Bash Desert Truck 4WD Roller. ARRMA® adds extra toughness everywhere it counts, making this chassis the perfect platform for high-speed bashing whether you’re blasting through coastal sand dunes or thrashing across concrete sidewalks. It’s fully assembled and ready to accept your choice of powerful electronics.
The tough-as-nails anodized aluminium chassis has been reinforced with aluminium front and rear chassis braces and a tower-to-tower centre brace for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to an independent suspension with bump-soaking oil-filled shocks, the truck handles equally well over wicked or well-travelled tracks.
Its drivetrain is a masterpiece of heavy-duty design, featuring steel driveshafts, metal gears, and all-metal diff outdrives. The MOJAVE™ EXtreme Bash Desert Truck 4WD Roller’s list of EXB EXtreme Bash components also includes the following — and more — to give this big machine uncompromising durability:
-
EXB Anodized Aluminium Servo Mount
-
EXB Large Volume Waterproof Receiver Box
-
EXB Heavy-Duty Steel Turnbuckles
-
EXB Plated Limited-Slip Differentials
-
EXB Heavy-Duty Front Upper Steel Hinge Pins
Vented, multi-terrain dBoots® FORTRESS™ tires on multi split-spoke wheels give your MOJAVE™ EXtreme Bash Desert Truck 4WD Roller the grip to get up, over, or through anything in your way. And it doesn’t just perform like a winner. It looks like one, too, with the included, exclusive EXB matte and gloss finish desert truck body, colour-coordinated roll cage and roof rails, and even a detailed cockpit.
What’s in the Box?
-
ARRMA® MOJAVE™ EXtreme Bash 1/7 Desert Truck 4WD Roller
-
Product Manual
What you need
- (1) 2+ Channel Transmitter and Receiver
- (1) Metal Gear, Hi-Torque Steering Servo
- (1) Electronic Speed Control
- (1) Motor
- (2) 2S or 3S LiPo Battery
- (1) Compatible LiPo Battery Charger
- (1) Pinion Gear
Specs
- Completion Level:
- Race roller
- Scale:
- 1/7
- Length:
- 28.15 in (715mm)
- Width:
- 13.98 in (355mm)
- Height:
- 10.59 in (269mm)
- Weight:
- 10.56 lb (4.8kg)
- Ground Clearance:
- 1.85 in (47mm)
- Wheelbase:
- 16.54 in (420mm)
- Front Track:
- 13.98 in (355mm)
- Rear Track:
- 13.98 in (355mm)
- Chassis:
- 3mm Plate, CNC 7075-T6 aluminum
- Suspension:
- Independent
- Shock Type:
- Oil-filled, coil-over springs
- Drivetrain:
- 4WD
- Differential:
- Three oil-filled metal gear diffs
- Wheel Type:
- 6-Spoke, 17mm hex
- Wheel Diameter:
- 3.4 in Inner, 2.4 in Outer (86mm Inner, 61mm Outer)
- Tyre Tread:
- dBoots® FORTRESS™
- Tyre Diameter:
- 5.47 in (139mm)
- Pinion:
- 16T
- Spur Gear:
- 50T
- Gear Pitch:
- 1.0MOD
- Internal Gear Ratio:
- 4.3
- Final Drive Ratio:
- 13.44
- Body:
- Painted, decaled and trimmed
- Ball Bearings:
- Full ball bearing drivetrain
- Experience Level:
- Intermediate
- Recommended Environment:
- All-terrain
- Is Assembly Required:
- Yes
- Approximate Assembly Time:
- 1-3 Hours
(ARA7204)
SKU | ARA7204 |
Brand | ARRMA |
