CSE011014800 | CASTLE CREATIONS CAPACITOR PACK, 8S MAX (35V), 2240UF

SKU: CSE011014800

$59.00
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

Power Efficiency!

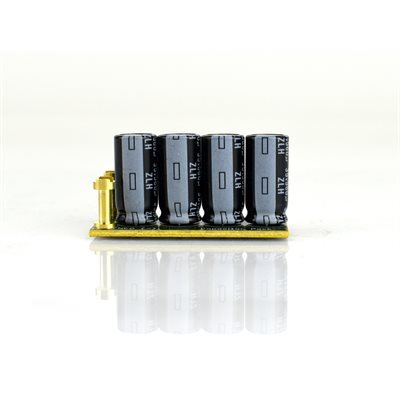

CC CapPack is useful in all brushless motor applications, where it serves to give just that little boost needed to overcome ripples in the battery voltage caused by hard acceleration or long battery wires. Ripple voltage is hard on an ESC - adding the CC CapPack can help reduce the load on the controller's on-board capacitors. This CapPack uses four 560µF, 35V capacitors totaling 2240µF, which increases its ripple reducing capabilities. It can be used with LiPo batteries up to 8 cells. If your batteries are greater than 8s (35V) then you will need the 880µF, 50V CapPack.


Helis:
CC CapPack is highly recommended for all 500 class and smaller heli applications where Y harnesses and long wires can bleed voltage, and hard collective pulls can strain even the most powerful batteries.

Surface Vehicles:
With their high torque requirements – going from 0 to 100% throttle isn't easy on controllers or batteries - RC cars and trucks put enormous loads on brushless power systems. Use CC CapPacks in high performance applications (IE drag racing and high speed runs) to help your system power through the abuse.

Fixed Wing Aircraft:
Larger electric power systems lead to larger electric powered aircraft, and sometimes the distance between the battery pack and the ESC grows beyond the length of the wires installed on the components. Adding wire also adds inductance, which can increase the ripple voltage in a system. CC CapPack essentially negates the ripple caused by the addition of up to 12 inches of length to the battery wires.

Note: All Castle controllers with data logging capabilities can report the ripple voltage they encounter during use. Ripple voltage peaks should always be less than 10% of the total pack voltage; the smaller the ripple voltage the better. If an application exhibits more than 10% ripple voltage under peak loads, the user should consider using higher discharge (C Rating) batteries, shorter wires, higher current connectors, better gearing or a smaller load.

Multiple CapPacks may be used in an application. They should all be installed as close to the ESC as possible.

Cap Pack installation guide



Technical Specs
Size: Length: 1.8" (45.7mm)
Width: 0.78" (19.8mm)
Height: 0.88" (22.1mm)
Weight: N/A
Voltage Range: 5V - 35V
Capacitance: 2240µF total

(CSE011014800)
