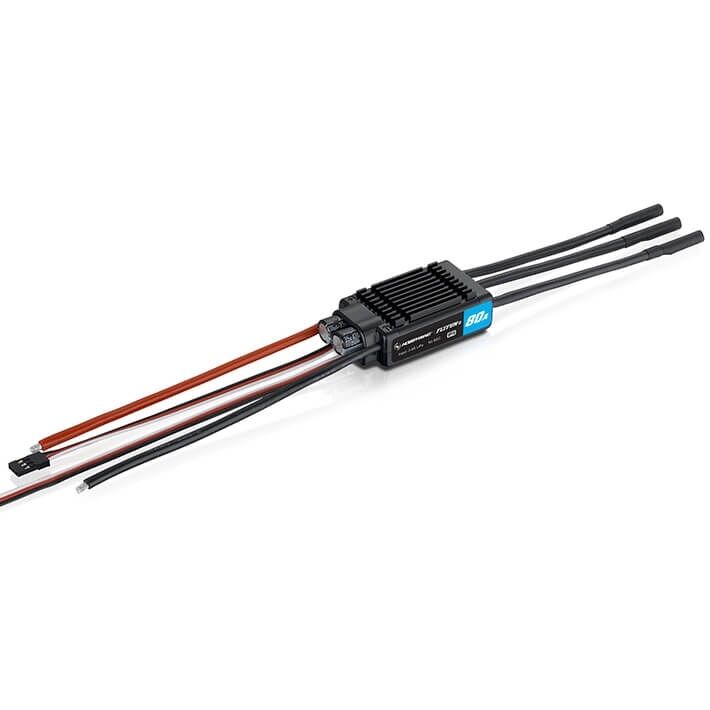

FLYFUN 80A V5 esc 3-6s 5A BEC

HW30214201

Calculate Shipping

Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

This is newest Hobbywing Speed Controller , Throttle more linear, lower temperature, longer flight time

Specifications :

80A V5 Speed Controller ESC :
Current :80A (Peak.Current :100A )
Size : 69.8x34.6x19.2mm
Battery : 3-6S Lipo
Weight : 92g
Swithch BEC 5.2V/6V/7.4V to options
Output Current : 8A(Peak.Current 20A)
Programing Card : LED digital Or Remote control to Programing
Functions :

1. DEO - Driving Efficiency Optimizati

Bringing faster and more linear throttle response, flight stability and flexibility to be strengthened at the same time; lower temperature rise,
Electric transfer work ; higher drive efficiency, extend the flight time.

Slow start technology, adapter duct motor, reverse thrust function,
More like real, fixed wing flight to add more fun

2. New design of the multi-file slow start function, in addition to adapt to the general propeller , the more suitable for different sizes aircraft

Ducted aircraft; with anti-push function (ESC on the reverse brake function), the aircraft landed open
Can effectively reduce the aircraft taxi distance, simulate the real aircraft of the ultra-short distance landing mode, in addition to ordinary
Brakes, Proportional Brakes, Brakes Off Three modes, brakes are adjustable in normal brakes,
In the car mode, the brake force is automatically distributed by the accelerator rocker.

3.High power BEC, stable and reliable

Upgrade high-power programmable switch mode BEC, the output voltage 5.2V / 6.0V / 7.4V third gear adjustable
Continuous output current 8A, instant 20A, can load more or more power onboard electronic equipment
(More or more powerful steering gear, flight control, airborne lights, etc)

4. Multiple protection, double security

With start protection, current protection, temperature protection, capacitor temperature protection
Overload protection, throttle signal loss protection, input voltage exception protection
Multi-protection function, effectively extend the electrical life
