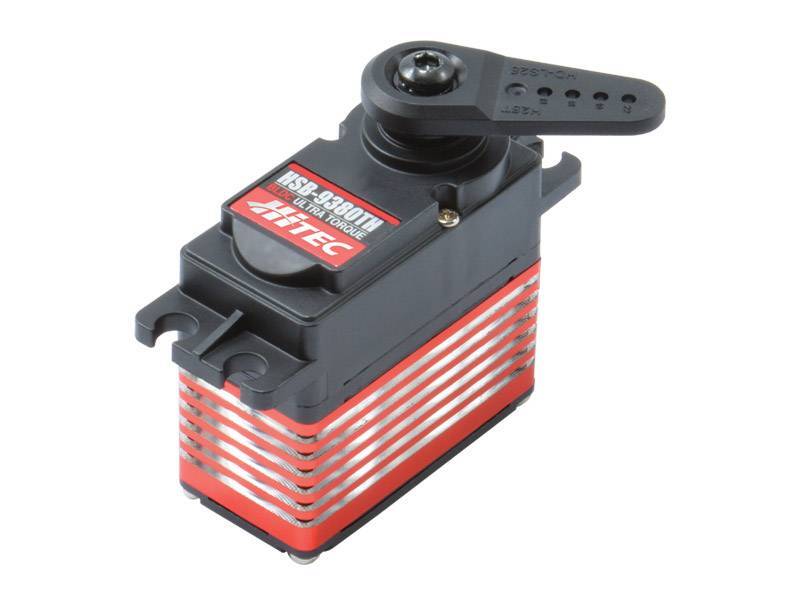

Hitec HSB-9380TH 34kg Ultra Torque Brushless Digital Titanium Ge

HRC39380

SKU: HRC39380

$279.00
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $25.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.
Product Description

With ultra-efficient Neu brushless motors, titanium gear trains, low current consumption and constant output power, the HSB-93XX series of servos is the perfect match for the most discriminating pilots and racers.

Features

  • Programmable 12-Bit PWM Digital Amplifier
  • Custom Long Life Brushless Motor
  • 1M Cycle Long Life Potentiometer
  • Constant Output Torque
  • Wide Operating Voltage (5 ~ 9 Volts DC)
  • Dual Ball Bearing Supported Output Shaft
  • Dust Resistant and Splash Proof Case
  • 25-Tooth Output Spline
  • Hybrid Nylon Reinforced Plastic and Aluminum Case
  • Low Power Consumption

Programmable Functions

  • End Point Adjustments
  • Direction
  • Fail Safe
  • Dead Band
  • Speed (Slower)
  • Soft Start Rate
  • Data Save / Load
  • Program Reset (From File)



Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.17 ~ 0.14
Maximum Torque Range oz. / in. 472
Maximum Torque Range kg. / cm. 34
Current Draw at Idle 27 mA
No Load Operating Current Draw 250 mA
Stall Current Draw 2,100 mA
Dead Band Width 1 µs
Physical Specifications
Dimensions (Inches) 1.57 x 0.79 x 1.50
Dimensions (Metric) 40.0 x 20.0 x 38.0
Weight (Ounces) 2.4
Weight (Gram) 68.0
Circuit Type EBL Digital
Motor Type NeuCastle Brushless
Gear Material Titanium
Bearing Type Dual Ball Bearing
Output Shaft (type / Ømm) H25T
Case Material Plastic / Aluminum
Dust / Water Resistance Splash Proof
Connector Gauge (AWG) / Strand Count 20 / 80



(HRC39380)

SKU HRC39380
Brand HITEC
Shipping Weight 2.0000kg
