###XRotor 20amp 2-4s ESC BLHeli

HW30901066

SKU: HW30901066

$24.03
RRP $26.70
SAVE $2.67 (10%)
In Stock



Fixed Rate By Invoice Total - $14.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

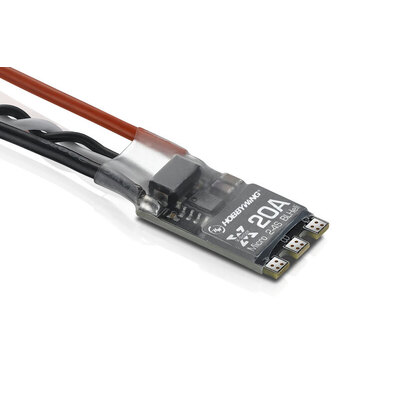

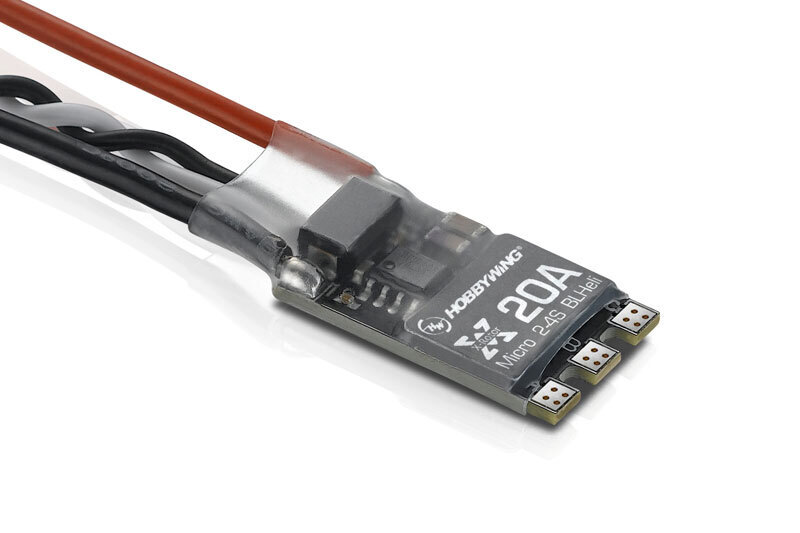

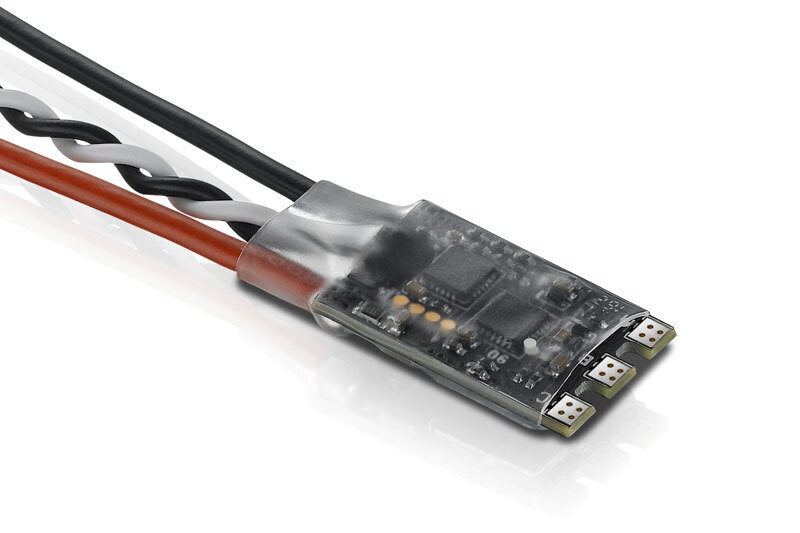

XRotor micro ESCs are an incredible small size and lightweight - specially designed for competition FPV drones.

The use of F396 48MHz MCU, imported MOSFETs (Toshiba MOSFETs for 20A &35A ESCs, Fairchild MOSFETs for 30A ESCs) and ceramic capacitors, 3-in-1 drive ICs, 3-ounce copper, 4 layers of PCBs and other quality components guarantees less heat, higher efficiency and rapider response.

Damped light mode improves the motor retardation and allows users to brake the FPV drones more efficiently. Active-freewheeling technology improves driving efficiency, flight time and heat dissipation. The ESCs support OneShot125 high speed throttle signal and regular throttle signal (within 500Hz) modes.

The twisted-pair throttle signal cable effectively reduces interference produced in signal transmission and makes the flight much more stable and reliable.

HobbyWing XRotor Micro ESC Features:

  • Quality Components
  • Super Small & Light
  • BLHeli Firmware Ready
  • Damped Light Mode & OneShot125 Mode Supported
  • Twisted-Pair Signal Cable Reduces Interference

Spec Check:

  • Cont./Peak Current: 20A/30A
  • LiPo Cells: 2-4S LiPo
  • BEC Output: No
  • Input Wires: Red-20AWG-100mm*1; Black-20AWG-100mm*1
  • Output Wires: No wires but solder tabs
  • Input Connectors: No
  • Output Connectors: No
  • OneShot Mode: Supported
  • Timing: Supported
  • Size: 24.0x13.9x5.5mm
  • Weight: 7g

(HW30901066)

SKU HW30901066
Brand HOBBYWING
