KO PROPO MC-8 TR Set w/ Xpansion Keys EXP-801 for MFC-02/03 FOR TAMIYA TANKER TRUCKS

KO80716

Calculate Shipping

Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

KO PROPO MC-8 TR Set w/ Xpansion Keys EXP-801 for MFC-02/03 FOR TAMIYA TANKER TRUCKS

KO PROPO MC-8 TR Set w/ Xpansion Keys EXP-801 for MFC-02/03

[MC-8 Specifications]
・2.4GHz MX-F Multi controller
・Dimensions: 150.0 x 84.5 x 61.0mm
・Weight: 145.5g (not included battery)
・Battery: Dry battery AAA x4(Separate sales)
・Current:less than 50mA
・Continual use time: 17 hours ( It will be different by each situation.)
・Number of channels: 8
Stick operation x4 + Switch operation x4
・Frequency: 2.4GHz
・Compatible receiver: MR-8
*Can not use an FHSS receiver like the KR-211FH.

[MR-8 Specifications]
・2.4GHz MX-F multi receiver
・Dimensions:27.0 x 28.0 x 15.0mm
・Weight: 7.0g
・Operation voltage: 3.0 - 7.4V
・Battery types for use: Dry battery, Rechargeable batteries.
（Ni-MH 3~5s、Li-Fe 1~2s、Li-Po 1s）
*Do not mix different types of batteries.
*Please notice voltage down when using Lithium batteries.
・Current : less than 40mA (whilw receiving)
・Number of channels: 8
・Frequency: 2.4GHz
・Compatible transmitter: MC-8

[Xpansion keys EX-801 Specifications]

・Weight: 48g

Made in Japan

●Various functions of Tamiya trailer RC can be operated with one push. Recommended for Tamiya MFC-02 / 03.

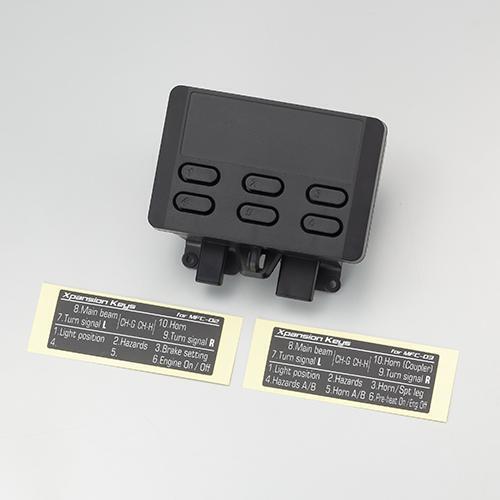

What is Xpansion keys EXP-801
Xpansion keys EXP-801 is extension unit for MC-8 which is compatible for use with Multi-function unit MFC-02/03 respectively for 1/10 R/C Pick-up trucks and 1/14 R/C Trailer Truck from Tamiya Inc. By pressing the function keys of this unit and the MC-8 button, you can operate various functions of the MFC-02 / 03 such as turning on / off the light and switching the support leg with one push

*MFC-02, MFC-03 are products by Tamiya inc. Please refer to the TAMIYA WEB SITE about these products.

What is MC-8?
MC-8 is multi controller which is recommended for RC car control, modify assembly kit, and custom RC car controlled.When using for a RC car; forward, brake, reverse, left and right steering is performed by stick control. Light weight for easy handling, good dimension allows easy use for little children and also great for people of all ages. Equipped with the minimum functions used in RC cars, such as trim settings and reverse functions.
A simple product that allows for added extension. Please refer product page about detail of the MC-8.

MR-8 is compatible with the MC-8 receiver. (Receiver accepts the radio signal from the transmitter and outputs signals to each device.) The format of the signal from the MR-8 is general RC, so you can use it with our servos, ESC and each device in a RTR set.

（※1）We have confirmed the TAMIYA XB Series, KYOSHO RTR.
But we can not test all models, so we can not guaranty all models.

MC-8 has a reverse function that can change the signal directions, so it can change the signal when the signal direction is reversed but the direction of the installed devices. Also the end point can be set to help prevent servos from being broken by over operating the steering. MC-8 has the necessary functions to operate RC cars and customization to satisfy you.

MR-8 can be used with easy operation. Please insert connector to the channel you want to use.

For example, if you want to control the steering with CH-B of the MC-8, insert the connector of the steering servo to B of the MC-8. Turn on the MC-8 and then the MR-8 to control the steering with the MC-8.

【Please note】

*Depending on the servo installed in the machine, it may be necessary to set the steering operation direction to reverse, but if the steering is reversed, the turn signal operation direction will also be reversed. When setting to reverse, replace the blinker lamp connection. For details, please read the instruction manual attached to the unit. (Reverse setting is a function that the steering servo operates in the opposite direction to the steering. The direction of operation changes depending on the mounting direction of the servo, so reverse setting may be required.)

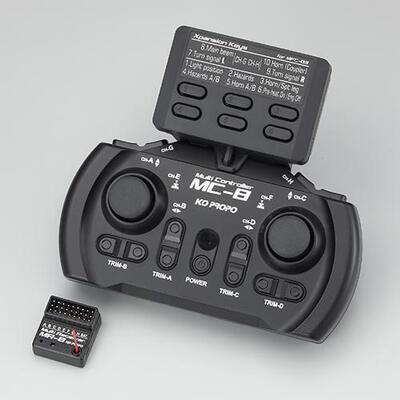

Contents
Multi conroler MC-8 x1
Multi Receiver MR-8 x1
Xpansion Keys EXP-801(for MFC-02/03) x1

(157508678)
