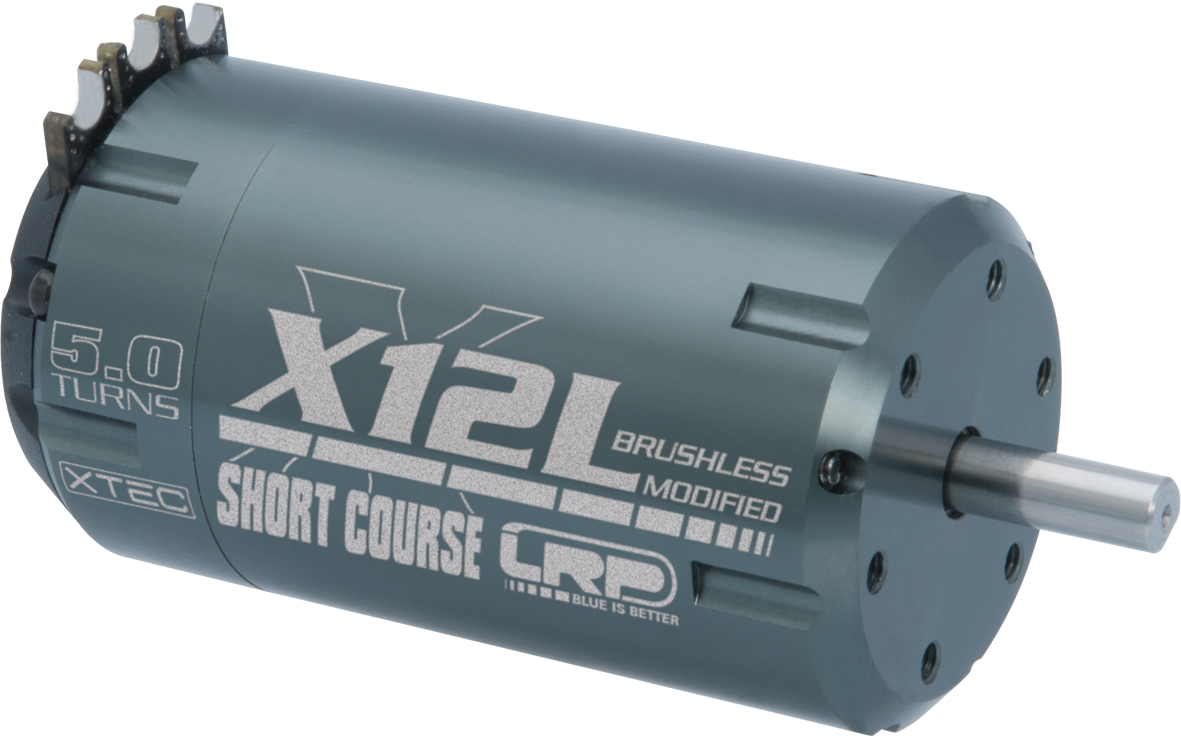

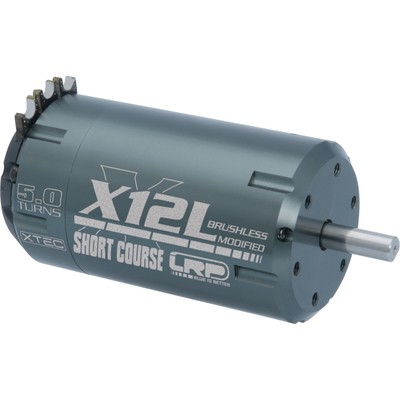

LRP X12L 5.5T 3700KV 550 Short Course Modified Brushless Motor

SKU: LRP-50940

$175.00
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

X12L Short Course 550 BL Modified 5.5T

The X12L Short Course 550 is based on the revolutionary X12 brushless modified motor. But it is exactly tailored for the demands of the popular Short Course trucks.

With a â€?L“ for Large, a longer version of the worldwide successful Vector X12 is available. The brushless motor is equipped with the fully adjustable and replaceable PreciSensorTM system: this new, precise sensor positioning delivers a power never seen before, highest torque, perfect throttle response and outstanding efficiency. The motor is unlike any other brushless motor. The X12L Short Course 550 is constructed of two main parts, using only four screws. This results in the possibility to access and replace the rotor without having to take the motor out of the car.

In addition, the special motor features a 13mm sintered magnet on a hardened shaft. This further optimises the motor’s efficiency, performance and mid-range torque. The X12L Short Course 550 is THE power package for every Short Course truck!

Features
  • 550 size: 75% longer magnet and stack for highest torque and power
  • Short Course specialist: Optimised winding types for the power hungry Short Course trucks
  • HDS technology: High Density Stack for highest power output
  • PreciSensor System: Revolutionary precise sensor postitioning for maximum power, best throttle response and highest efficiency
  • High-Power sintered magnet: High-strength sintered magnet for maximum performance
  • Dismountable: Fully dismountable for cleaning and tuning
  • Oversized ball bearings: For highest performance and durability
  • Easysolder design: Heavy copper, multilayer PCB for lowest resistance
  • Reproducible timing: Timing adjustable in clearly defined, reproducible steps with the new moulded timing inserts for same result every time
  • Handwound
  • Can be used with sensored and sensorless speedos.
Specifications
RPM26640
Weight240g
kV3700
Power695W
Magnet materialSintered 13.0mm
Voltage input4.8-11.1V
Efficiency91%
Length66.0mm
Diameter35.8mm
Output shaft5.0mm
Application - Hobby / Sport4WD MT, SC, BX
Application - Advanced4WD TX

(LRP-50940)

SKU LRP-50940
Brand LRP
Shipping Weight 4.0000kg
