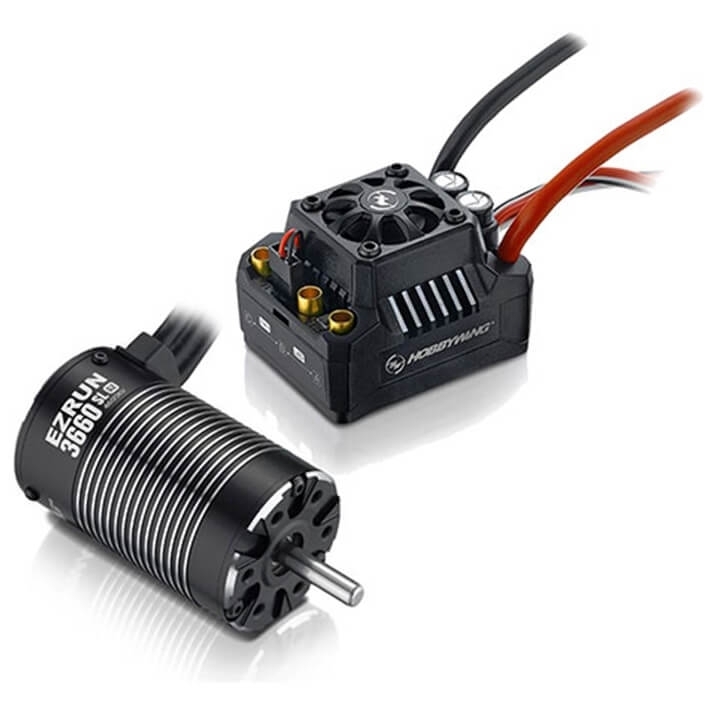

####MAX10 combo W/SCT3660SL 4000KV motor

HW38010201

SKU: HW38010201

$233.46
RRP $259.40
SAVE $25.94 (10%)
In Stock at Warehouse



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.

The MAX10 SCT ESC is applicable to various 1/10th scale vehicles like trucks, short-course trucks, monster trucks, and etc. Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EzRun MAX10 SCT is able to deliver unmatched power and performance for even the most hardcore of racing applicatinos, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

With incredible acceleration capabilities and a rock-solid, stable output, the MAX10 SCT can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrian. The user will have the choice of adusting the ESC parameters as per his perference and ability.

The waterproof and dust-proof design allows the MAX10 SCT to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

You can upgrade the MAX10 SCT with the HobbyWing USB LINK software, a multifunction LCD program box and a laptop. HobbyWing updates its ESC firmware regularly giving you upgraded features more often when available.

Hobbywing EzRun MAX10 SCT Features:

  • High Reliability & Durability
  • Great Flexibility & Versatility
  • Advanced and Secure Electronic Switch
  • Applicable to All Weather Conditions
  • Innovative Filter Capacitor Thermal Protection
  • Regular Firmware Updates Free of Charge

Spec Check:

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensorless
  • Waterproof: Yes
  • Cont./Peak Current: 120A/760A
  • Input: 2-4S LiPo/6-12 Cells NiMH
  • BEC Output: Switch Mode:6V/7.4V,3A
  • Input Wires: Red-12AWG-200mm*1/Black-12AWG-200mm*1
  • Output Wires: Black-12AWG-200mm*3
  • Input Connectors: No
  • Output Connecotors: 4.0 Bullet Connectors (Female)
  • Fan Size: 25.0x25.0x10.0mm
  • Fan Voltage Range: 5-7.4V
  • WiFi Module: Supported
  • Program Port: FAN/Program Port
  • Size: 49.0x39.5x34.7mm
  • Weight: 105g

The HobbyWing EzRun 3660 G2 motor features an Innovative 4-pole-8-magnet "staggered pole" rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.

HobbyWing EzRun 3660 G2 4000KV SL Motor Features:

  • Innovative 4-pole-8-magnet "staggered pole" rotor
  • Built-in temperature sensor and sensor port
  • O-ring seal fitted between the front end bell and motor case
  • Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
  • Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
  • CNC machined aluminium housing, high purity copper windings and advanced rotor structure
  • Rebuild-able design for easy routine maintenance

Spec Check:

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensorless
  • Pole Count: 4
  • KV Rating: 4000
  • LiPo Cells: 2-3S
  • No-load Current(A): 5.7
  • Timing: 0 Degrees(Fixed)
  • O.D.(mm): 36.00
  • Length (mm): 60.00
  • Shaft Diameter (mm): 5.0
  • Weight (g): 268

(HW38010201)

SKU HW38010201
Barcode # 6938994407397
Brand HOBBYWING
