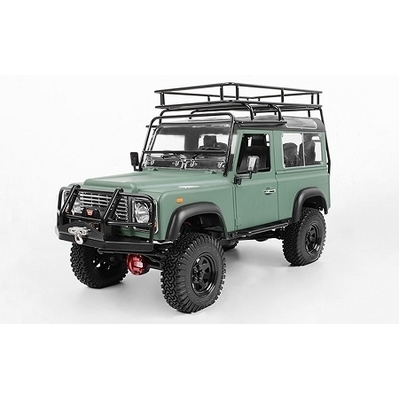

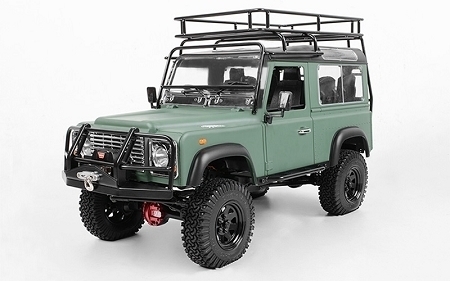

RC4WD Gelande II RTR D90 Truck Kit (Limited Edition)
RC4WD Gelande II RTR D90 Truck Kit (Limited Edition)
For a limited time we have a Gelande II with multiple accessories included to outfit the rig in true scale.
Specifications:
- Custom Designed for True to Scale Looks
- Realistic Aluminum Ladder Frame Chassis
- 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
- Dirt Grabber 1.9" All Terrain Tires
- Yota II Ultimate Scale Cast Axle
- R3 Single Speed Transmission
- Center Mounted Realistic 4x4 Transfer Case
- Cast Metal Axles with Locked Differentials
- 3 link front and 4 link rear suspension
- Gelande 2 Chassis
- Plastic Rod Ends
- Full Ball Bearings
- ARB Diff Covers
- Scale Steel Punisher Shaft V3
- Rock Krawler RRD Emulsion Scale Dual Spring Shocks
- Gelande Front Winch Bumper
- RC4WD 1/10 Warn 9.5cti Winch
- 540 Crawler Brushed Motor 45T
- Outcry Crawler Dual Motor ESC w. Fan & TurboBEC
- ESC Input Voltage: 4-12 NiCd/NiMH cells (1.2V per cell) or up to 14.8v LiPo
- Twister High Torque Metal Gear Digital Servo
- XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio
- RC4WD Wired Winch Control Unit
- RC4WD Spare Tire Case For Defender Body
- 1/10 Land Rover Defender D90 Limited Edition Pre-painted Green Body
- Gelande Side Rock Sliders
- Length: 19.4in / 493mm
- Width: 8.7in /221mm
- Height: 10.24in / 260mm
- Wheelbase: 10.63in / 270mm
- Weight: 141.8oz / 4.02kg
What's Included:
- 1x RC4WD Gelande II RTR D90 Truck Kit (Limited Edition)
Notes:
- Body is painted. Some assembly required
This is not a full RTR. This product requires products to be installed after delivery as the parts can cause damage in shipping if already installed.
Here is a list of the items that need to be installed to complete this truck.
Truck Kit
- Hex Drivers (1.5mm, 2mm, 2.5mm)
- Long Nose Pliers
- Associated Thread Locking Adhesive
- Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)
Body Kit
- Modeling / Craft Knife
- Instant glue / Plastic Cement (prefer non whitening)
- Hex Drivers (1.5mm, 2mm)
- Cross Phillips Screwdrivers (small)
Needed Equipment to Complete:
Build Time:
- This truck will require some work to complete.
- Some hardware may require threadlock.
- Some gears may need to be lubricated.
Replacement Parts:
- 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0129)
- Dirt Grabber 1.9" All Terrain Tires (Z-T0005)
- Hammer Transfer Case (1.47/1) (Z-U0024)
- R3 Scale Single Speed Transmission (Z-U0028)
- Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
- Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
- GELANDE 2 CHASSIS SET (Z-C0040)
- Gelande 2 Aluminum Body Mounts (Z-S0790)
- Servo Mounts for Gelande 2 Chassis (Z-S0791)
- 3MM BLACK SPACER WITH M3 HOLE (10) (Z-S0806)
- 1MM BLACK SPACER WITH M3 HOLE (10) (Z-S0809)
- 59mm (2.32") Aluminum Link for Gelande 2 (Z-S0807)
- Drag Link for Gelande 2 (Z-S0810)
- 65.3mm (2.57") Aluminum Link for Gelande 2 (Z-S0817)
- 70mm (2.75") Aluminum Link for Gelande 2 (Z-S0819)
- Transfer Case and Lower 4 Link Mount for Gelande 2 Chassis (Z-U0027)
- Scale Steel Punisher Shaft V3 (90.5mm - 110.5mm / 3.56" - 4.35") 5mm Hole (Z-S0826)
- RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm) (Z-D0052)
- Gelande 2 Front 3 Link & Panhard Mount (Black) (Z-S0794)
- Gelande 2 Rear 4 Link Mount (Z-S0795)
- 14t 32p Hardened Steel Pinion Gear (Z-S0430)
- M3 Medium Straight Plastic Rod End (20x) (Z-S0399)
- M3 Mini Plastic Rod End (20x) (Z-S0398)
- M3 Offset Short Plastic Rod End (20x) (Z-S0401)
- M3 Short Bent Plastic Rod End (20x) (Z-S0402)
- Front Shock Hoops for Gelande 2 Chassis (Z-S0798)
- Rear Shock Hoops for Gelande 2 Chassis (Z-S0799)
- Battery Plate for Gelande 2 (Z-S0792)
- R3 Single Speed Transmission Mounts (Z-S0802)
- Gelande 2 Rear Replacement Bumper (Z-S0801)
- Metal Drive Coupling for Gelande 2 (Z-S0803)
- 73mm (2.87") Aluminum Link for Gelande 2 (Z-S0805)
- Fuel Cell Radio Box (Z-S0592)
- RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)
- 540 Crawler Brushed Motor 45T (Z-E0004)
- Outcry Crawler Speed Controller ESC with TurboBEC (Z-E0007)
- Twister High Torque Metal Gear Digital Servo (Z-E0035)
- Heavy Duty Metal Servo Arm 25t Futaba (Z-S0822)
- RC4WD Wired Winch Control Unit (Z-S1089)
- RC4WD ARB Diff Cover For The Yota II Axle (Red) (Z-S1295)
- Gelande Side Rock Sliders (Z-S0137)
- Adventure Land Rover D90 Defender 90 Roof Rack (Z-C0024)
- RC4WD Spare Tire Case For Defender Body (Z-X0012)
- XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio (Z-R0006)
Optional Parts:
- 1.9 5 Lug Steel Wheel Hex Hub with Brake Rotor (Z-S0532)
- 1.9" Landies Internal Beadlock Wheels (Z-W0075)
- RC4WD Drive Flange Wheel Nut Cover (Z-S0756)
- RC4WD Mickey Thompson Metal Series 1/10 Wheel Center Caps (2) (Z-S0850)
- Gelande 2 Steering Guard (Z-S0824)
- Diamond Plate Accessory Pack for Defender D90 Body (Z-S0985)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
- RC4WD 90mm Old Man Emu Nitrocharger Sport Shock by ARB (Z-D0038)
- Superlift Adjustable Steering Stabilizer (90mm-120mm) (Z-S0986)
- Mud Flaps for Gelande 2 (Z-S0890)
- RC4WD Gelande Spare Tire Cover fits 1.55, 1.7 and 1.9 (Z-S0931)
- RC4WD Billet Aluminum Fuel Cell Radio Box (Black) (Z-S1093)
- RC4WD Billet Aluminum Fuel Cell Radio Box (Red) (Z-S1122)
- Inner Fender Set for Defender D90 Body (Z-S1194)
- RC4WD ARB Land Rover Defender 90 Winch Bar Front Bumper for Gelande 2 (Z-S0853)
- LED Basic Lighting System For Land Rover Defender D90 Body Set (Z-E0062)
- Tough Armor Swing Away Tire Carrier w/Fuel holder for the Gelande 2 (Z-S1296)
- Tough Armor Rear Tire Carrier for Gelande 2 (Z-S1200)
- RC4WD Adjustable Jack Stand Truck Display (Z-X0013)
- Gelande 2 Mounting kit for Jack Stand Truck Display (Z-S1324)
- Twister Ultimate High Performance Waterproof Servo (Z-E0063)
- Scale Rear Hubs V2 (Z-S1266)
- Front Light Grill for Land Rover Defender D90 (Type B) (VVV-C0074)
- Rear Light Grill for Land Rover Defender D90 (VVV-C0082)
- 1/10 Front Light Guards for Land Rover Defender D90/D110 (VVV-C0054)
- 1/10-1/14 D90 Large Red Light (Detailed) (VVV-C0091)
- 1/10-1/14 D90 Small Yellow Light (Detailed) (VVV-C0099)
- 1/10 Land Rover Defender D90 Emblem Set (VVV-C0004)
- 1/10 Land Rover D90 Metal Grill (VVV-C0019)
- RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
- Blade Snow Plow Mounting kit for Gelande 2 (Z-S1504)
- Functional Metal Light & Winch Bumper for Land Rover Defender D90 (VVV-C0125)
- Rear Center Window Guard for Land Rover Defender D90 (VVV-C0124)
- Metal Light & Winch Bumper for Land Rover Defender D90/D110 (VVV-C0123)
- Rear Small Window Guards for Land Rover Defender D90 (VVV-C0122)
- Side Windows Guard Pair for Land Rover Defender D90 (VVV-C0121)
- Complete Windows Guard Set for Land Rover Defen
(Z-RTR0023)
SKU | Z-RTR0023 |
Brand | RC 4WD |
Shipping Weight | 10.0000kg |
