TEQ Ultimate Scale Cast Axle (Front)
TEQ Ultimate Scale Cast Axle (Front)
With improved steering and durability, the TEQ Ultimate Scale Axles are a modern version of the Yota II axles designed as an upgrade for Axial SCX10 II and Element Enduro line of RC trucks. These scale axles are cast from a high grade aluminum alloy and come with integrated suspension link mounts that construct a single, hardened unit. Solid and maneuverable, this set features universal style XVD shafts that deliver a tighter turning radius and high strength driveline. The ring and pinion gears are a CNC machined, hypoid tooth design and are linked to a 6 bolt hardened steel locker. The C-hubs feature interlocking grooves on the front axle which enables caster customization and the front pumpkin is offset providing more ground clearance. All of this is packed into a high strength cast aluminum case with a long lasting powder-coated finish. These RC Axles will look awesome on your custom Axial SC10 II or Element Enduro.
Specifications:
- Die Cast Light Weight Metal Housing
- Hardened Steel Spool Gears
- 5mm Axle Output Shaft
- Full Ball Bearings
- Powder-coated in Black
- Width: 189.6mm / 7.46in
- Gear Ratio: 8T/30T
- 12mm Steel Wheel Hex
- Weight: 6.24oz / 177g
Shown installed on Axial SCX10 II for example (Not Included)
Shown installed on Element RC Enduro Sendero RTR 1/10 Rock Crawler for example (Not Included)
Images provided by RC4WD team driver Daniel Siegl

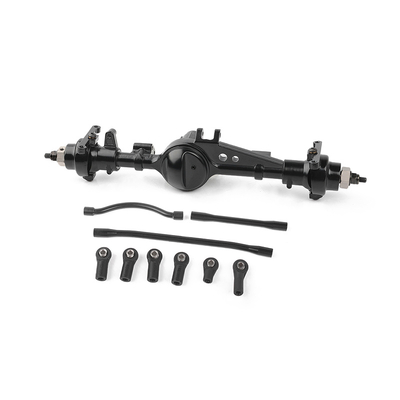

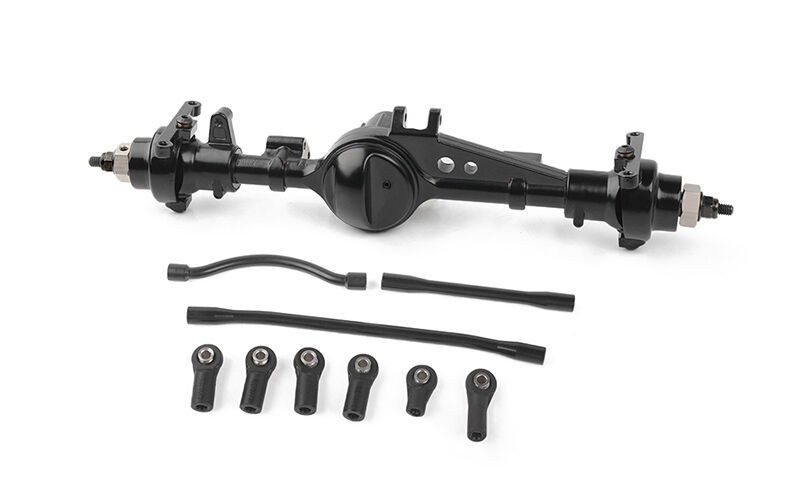

What's Included:
- 1x TEQ Ultimate Scale Cast Axle (Front)
- 1x 115.8mm Link
- 1x 63mm Link
- 1x 66mm Bent Link
- 1x M3 Plastic Bent Rod End
- 1x M3 Mini Plastic Rod End
- 4x RC4WD M3/M4 Plastic Short Rod Ends
- 2x M3 x 10mm Set Screws
- 4x M4 x 20mm Set Screws
Other TEQ Axles:
- TEQ Ultimate Scale Cast Axle (Rear) (Z-A0133)
Replacement Hardware:
- M4 Flanged Lock Nut (Black) (Z-S0620)
- M2 X 3mm Set Screws
- Steel Socket Head Cap Screws M2 x 5mm
- Steel Socket Head Cap Screws M2 x 10mm (Z-S0849)
- Steel Socket Head Cap Screws M2 x 14mm
- Steel Button Head Cap Screws M3 x 8mm (Z-S0652)
- M3 Plastic Bent Rod Ends (Z-S0074)
-
M3 Mini Plastic Rod End (Z-S0398)
-
RC4WD M3/M4 Plastic Short Rod Ends (Z-S1378)
-
M3 X 10mm Set Screw (Z-S0308)
-
M4 20mm Long Threaded Shaft (Set Screws) (Z-S0030)
Replacement Parts:
- TEQ Ultimate Scale Cast Axle Steering Knuckles and C-Hubs (Z-S1975)
- TEQ Ultimate Scale Cast Axle Diff Cover and Third Member (Z-S1980)
- TEQ Ultimate Scale Cast Axle Housing (Front) (Z-S1976)
- Replacement Steering Knuckles and C-Hubs for TEQ Ultimate Scale Axles (Z-S1975)
- Steering and Panhard links for TEQ Axle (Z-S1977)
- TEQ Ultimate Scale Cast Axle XVD Universal Axle Shafts (Front) (Z-S1978)
- TEQ Ultimate Scale Cast Axle Ring and Pinion Gears W/ Locker (Z-G0076)
- TEQ Ultimate Scale Cast Axle Service Kit (Front) (Z-S1985)
Notes:
- Fits Axial SCX10 II
- Fits Associated Element Enduro
- To install on Element Enduro chassis you will need to use the stock panhard and drag link.
- To retain a centered front axle the stock panhard link and drag link will need to the lengthened by loosening the rod ends 1-2 revolutions.
- Please do routine maintenance.
- Check the grease around the gears and also oil the bearings.
- Do not over tighten screws as you can strip the holes. Use Locktite but do not use too much or you can damage the casing.
(Z-A0127)
SKU | Z-A0127 |
Barcode # | 639302593455 |
