TRA6553X | Traxxas TQi Expander & GPS Speed Telemetry Module 2.0

TRA6553X

SKU: TRA6553X

$249.00
Out of Stock: Available to Order



Fixed Rate By Invoice Total - $18.99
Excluding Dangerous Goods, Large Aircraft Kits/Parts, Large Car Kits/Bodies - Additional Charges May Apply (Once order is placed we will contact you if there are any additional charges)

Free pick-up from Liverpool store - $0.00
Pick up from: 339 Macquarie Street Liverpool NSW 2170 (02) 960 22 333. Confirmation from store required before picking up order. Goods CANNOT be picked up without store confirmation. Valid photo ID must be presented and verified, along with confirmation email, when picking up order. For all online order inquiries please call (02) 960 22 333. Thanks.




Upgrade Your Traxxas Model with the TQi Telemetry Expander 2.0 and GPS Module 2.0!

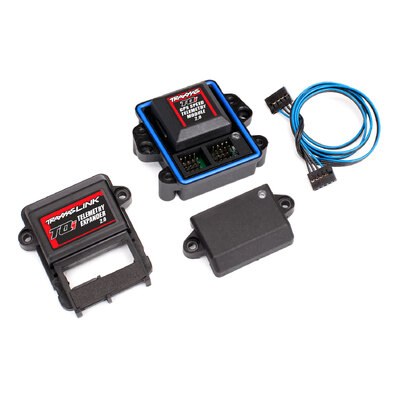

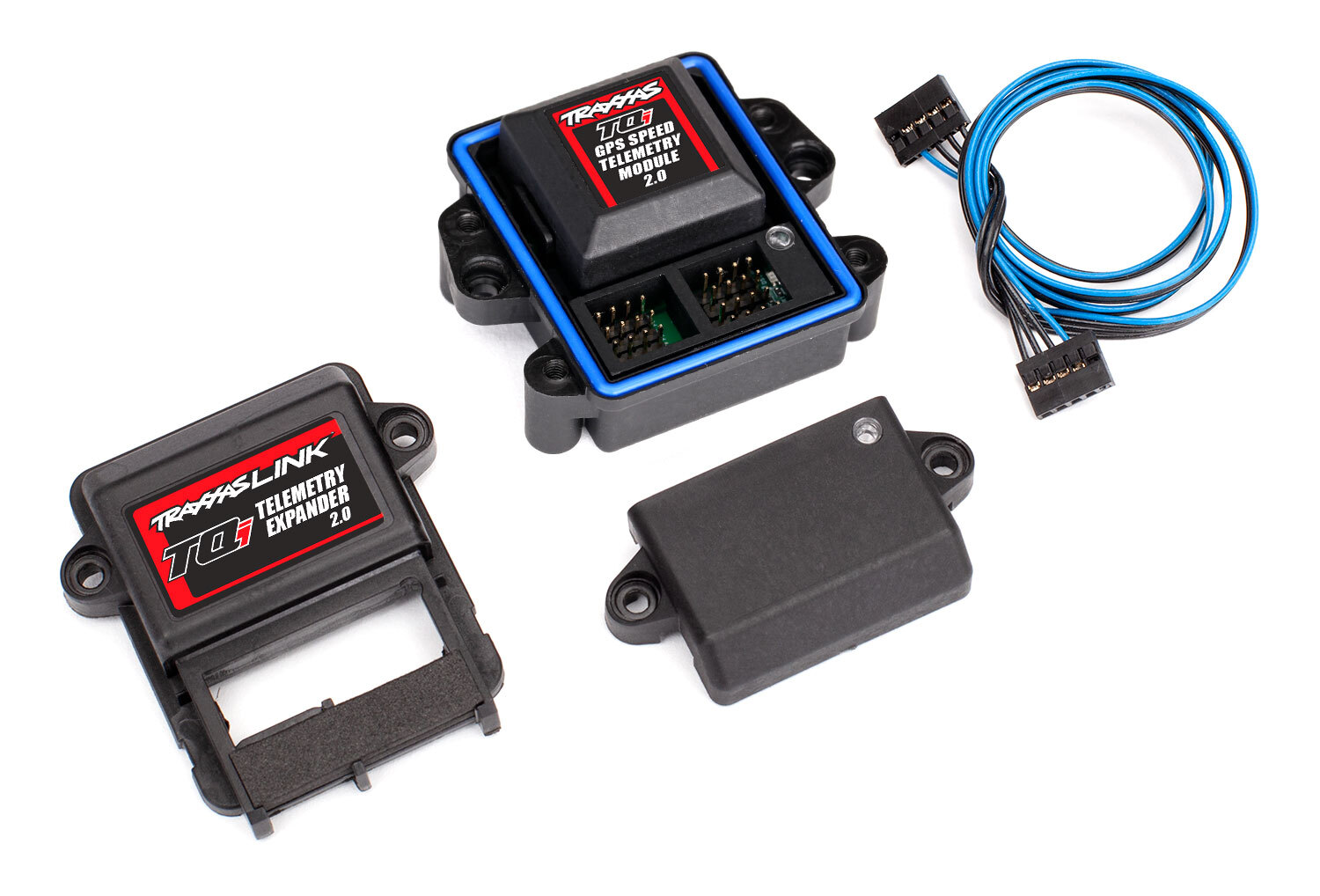

TQi Telemetry Expander 2.0 (#6550X) Contents (Three-Quarter View)

Requires the TQi radio system with Wireless Module (#6511), TSM receiver (#6533), and Apple iOS or Android mobile device running the Traxxas Link App. For device compatibility and to download the free app, please visit Google Play or the App Store.

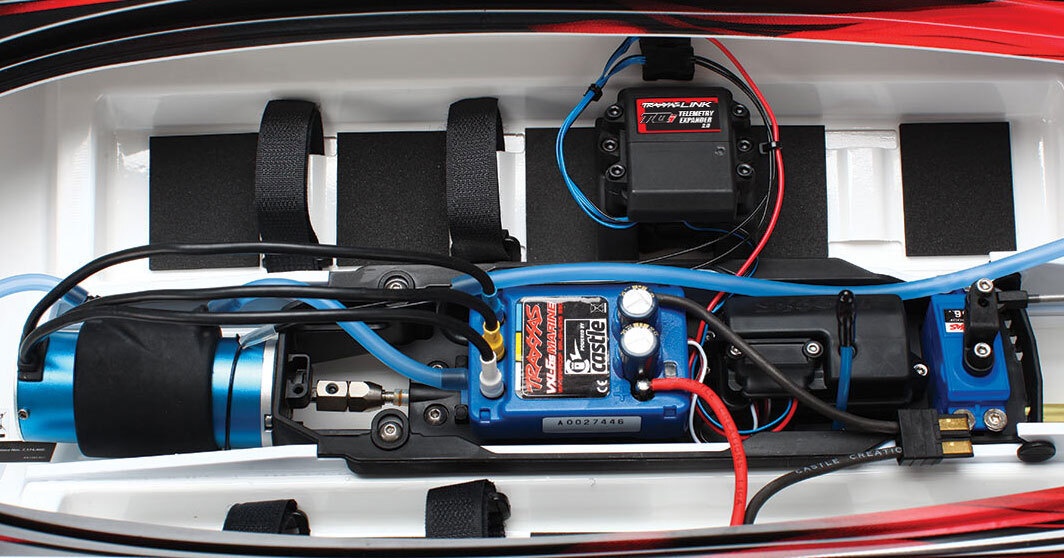

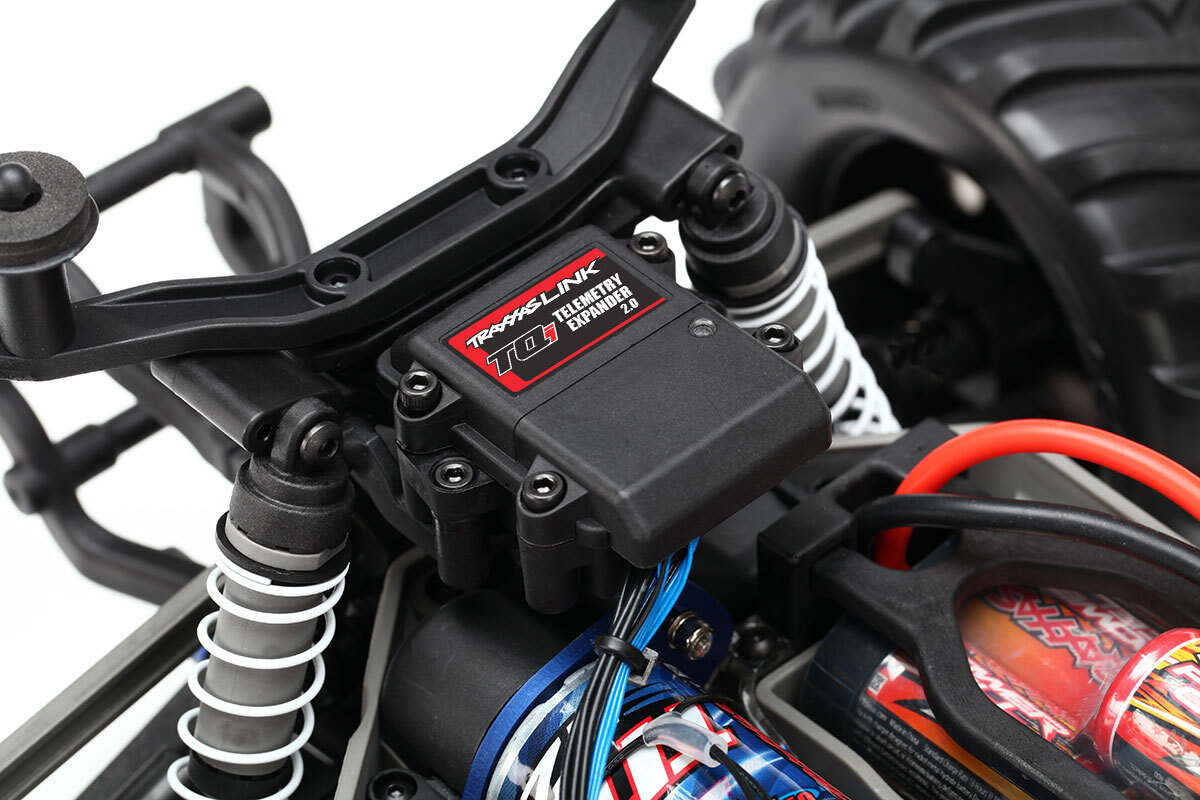

TQi Expander 2.0 (#6550X) Installed on Spartan (#57076-4)

Expanded Innovation

TQi Telemetry Expander 2.0 (#6550X) Inputs (Three-Quarter View)Traxxas telemetry changes the game by allowing you to monitor and record real-time data from your vehicle while you drive. The waterproof Telemetry Expander 2.0 includes the GPS Module 2.0 for the most accurate speed possible and accepts up to six additional auto-detectable sensors. The Traxxas Link app automatically recognizes sensors, so setup takes only a few moments! Advanced communication bus technology allows you to connect the telemetry expander to your TSM receiver or to your High-Voltage Power Amplifier, or directly to the VXL-6s and VXL-8s electronic speed controls with optional data cables. Install the Telemetry Expander, choose your sensors, and prepare for an all-new RC driving experience!



Important Note

The new GPS Module 2.0 (#6551X) and Telemetry Expander 2.0 (#6550X) replace the original Telemetry Expander (#6550) and GPS Module (#6551). The originals are not compatible with the new 2.0 versions.

­
TRAXXAS TELEMETRY EXPANDER KIT (#6553X) FEATURES
­
  • Includes receiver data cable (optional data cables available)
  • Installs quickly and easily; no parts to replace or swap
  • Waterproof case keeps the expander safe from the elements
  • Six available ports for connecting additional temperature and voltage sensors
  • Uses GPS and GLONASS global positioning for accurate, real-time speed
  • Speed readout not affected by gear ratio or tire-size
­
­

The Benefits of Traxxas Telemetry

The Traxxas TQi radio system, Wireless Link Module, and Traxxas Link App transform your Apple or Android device into a powerful tuning tool with an intuitive, high-definition, full-color graphical user interface. Adjust your radio trims and settings, vehicle profiles, update model memory, and tailor your vehicle for different driving conditions by means of a virtual dashboard and interactive screens. Using the complete TQi system and Traxxas Link app makes pro-level transmitter tuning fast, convenient, and easy.

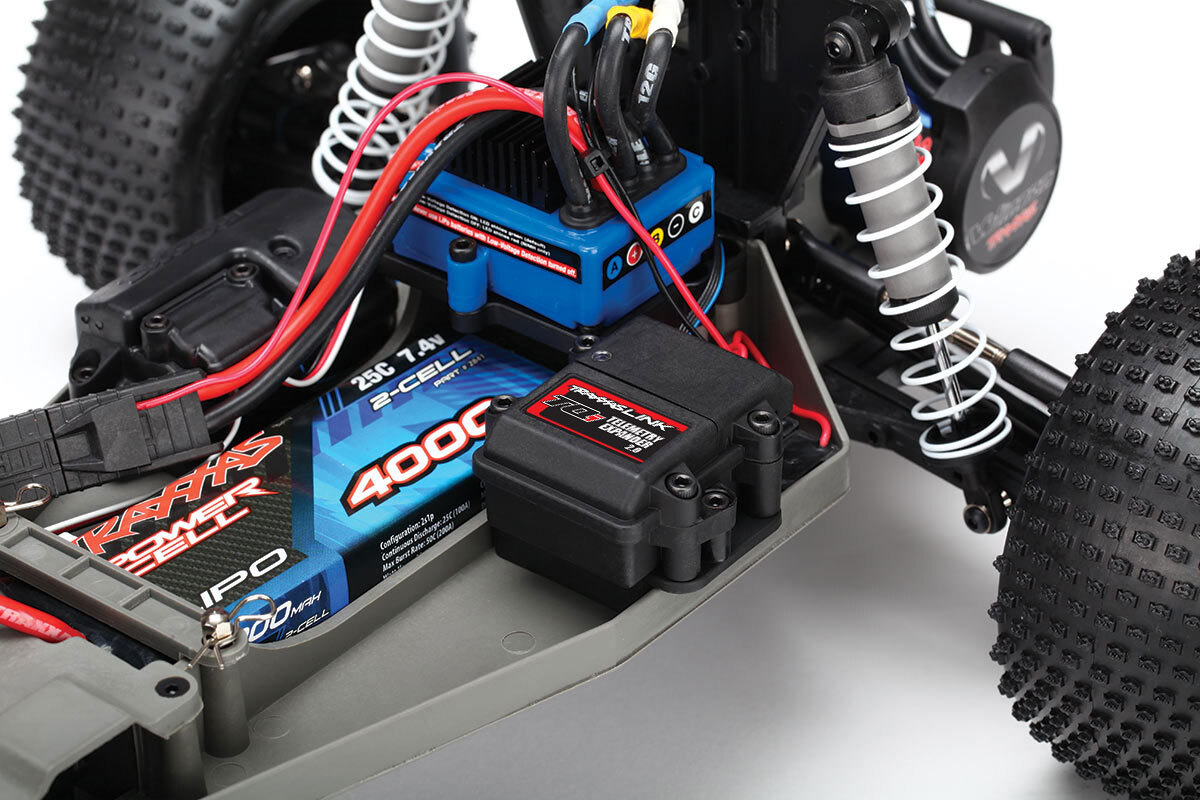

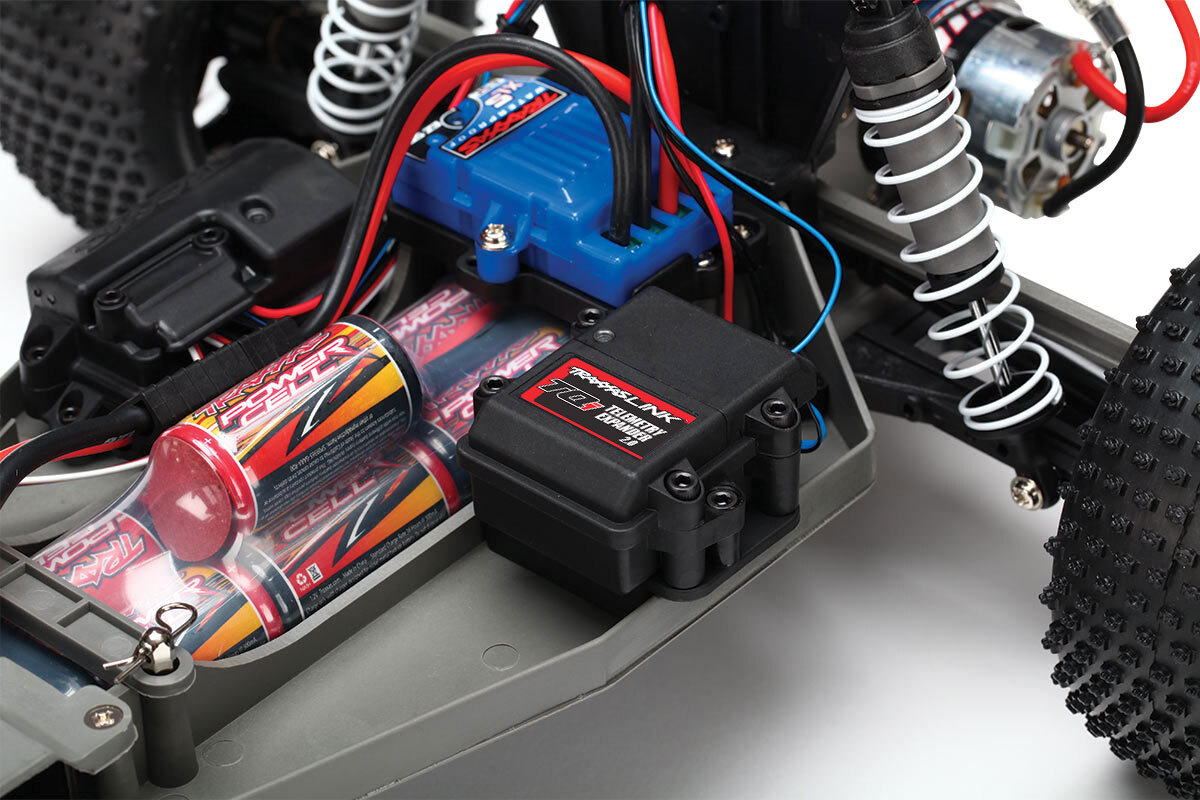

TQi Expander 2.0 (#6550X) Installed on Rustler VXL (#37076-4)

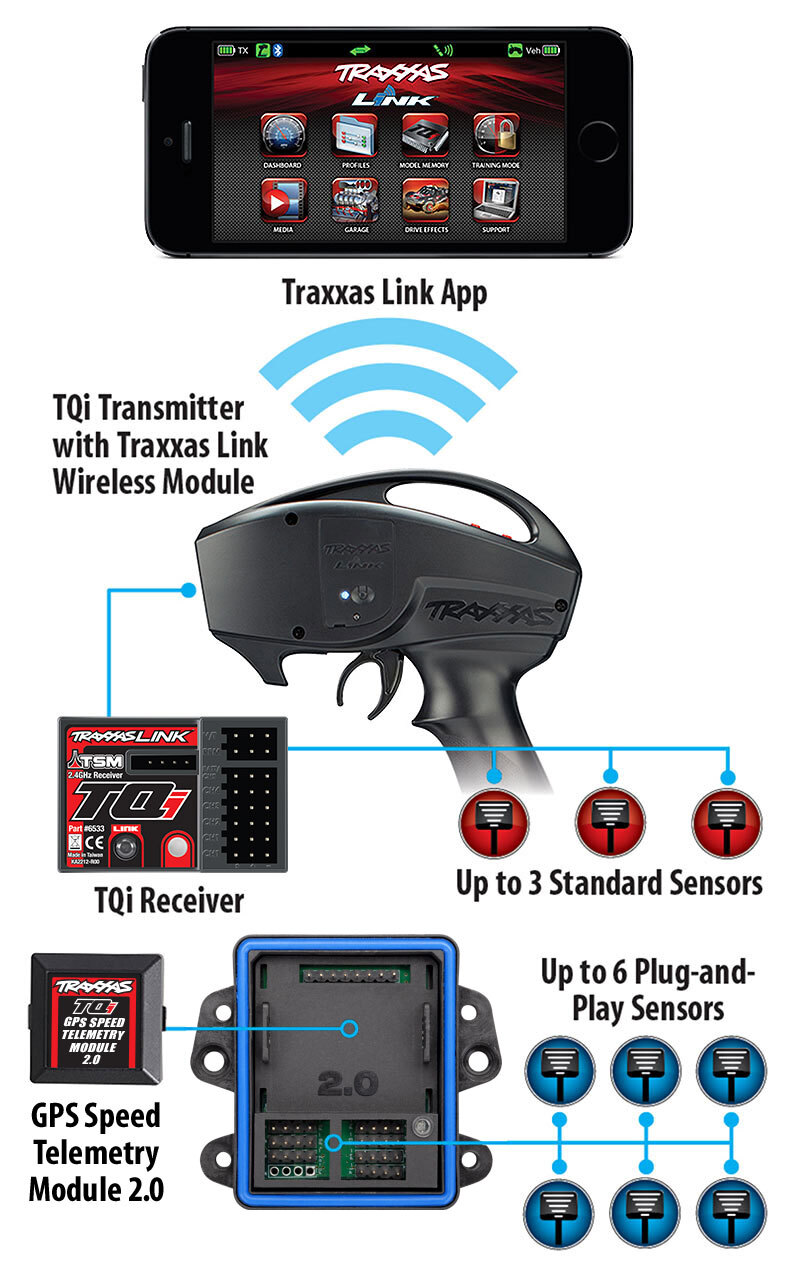

Open the dashboard from the Traxxas Link home screen to view data from telemetry-ready accessories and sensors. The application recognizes installed auto-detectable telemetry sensors for easy setup. Record and save all displayed data to share with friends and other RC enthusiasts. The Telemetry Expander adds even more functionality with up to six additional sensors and the GPS module. Installation is quick and easy utilizing a single high-speed communications cable to the receiver, or to the High-Voltage Power Amplifier or ESC with optional data cables. Unlock a whole new world of convenience and fun with Traxxas telemetry!

Traxxas Link App - Customizable Dashboard (60+mph, Electric)



Precise GPS-Based Speed

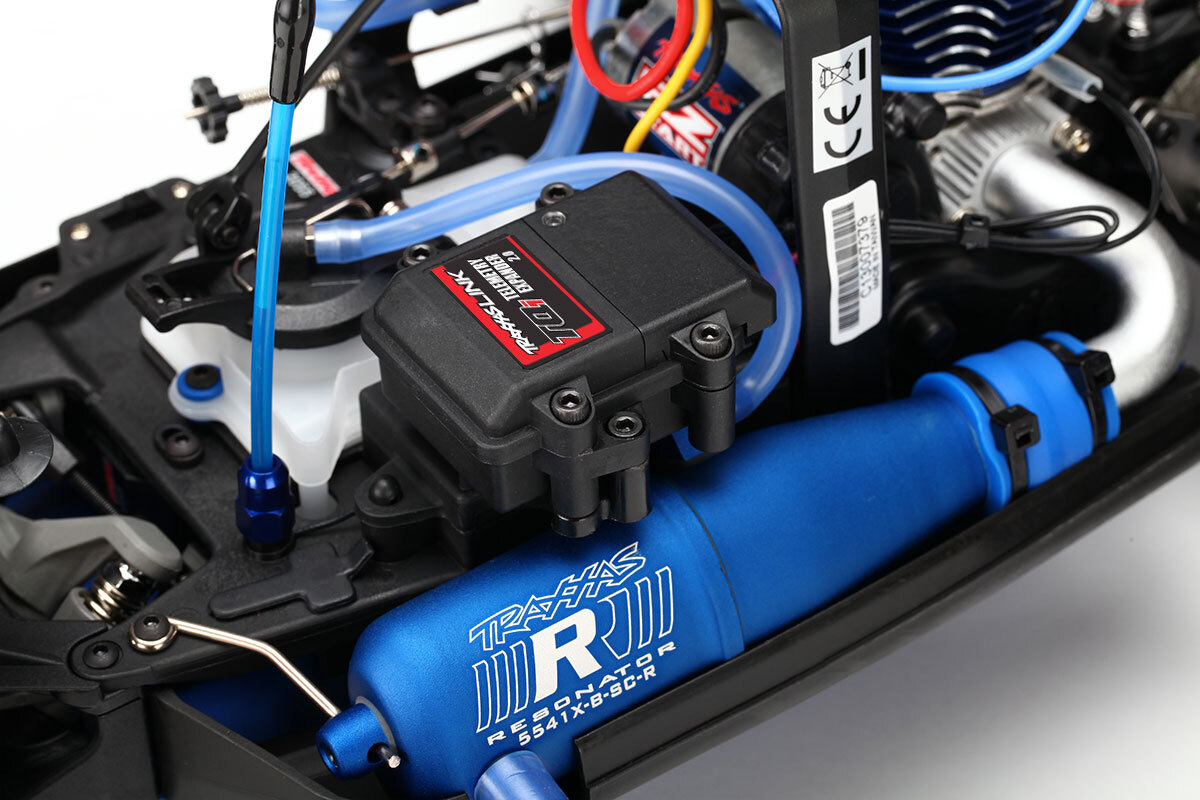

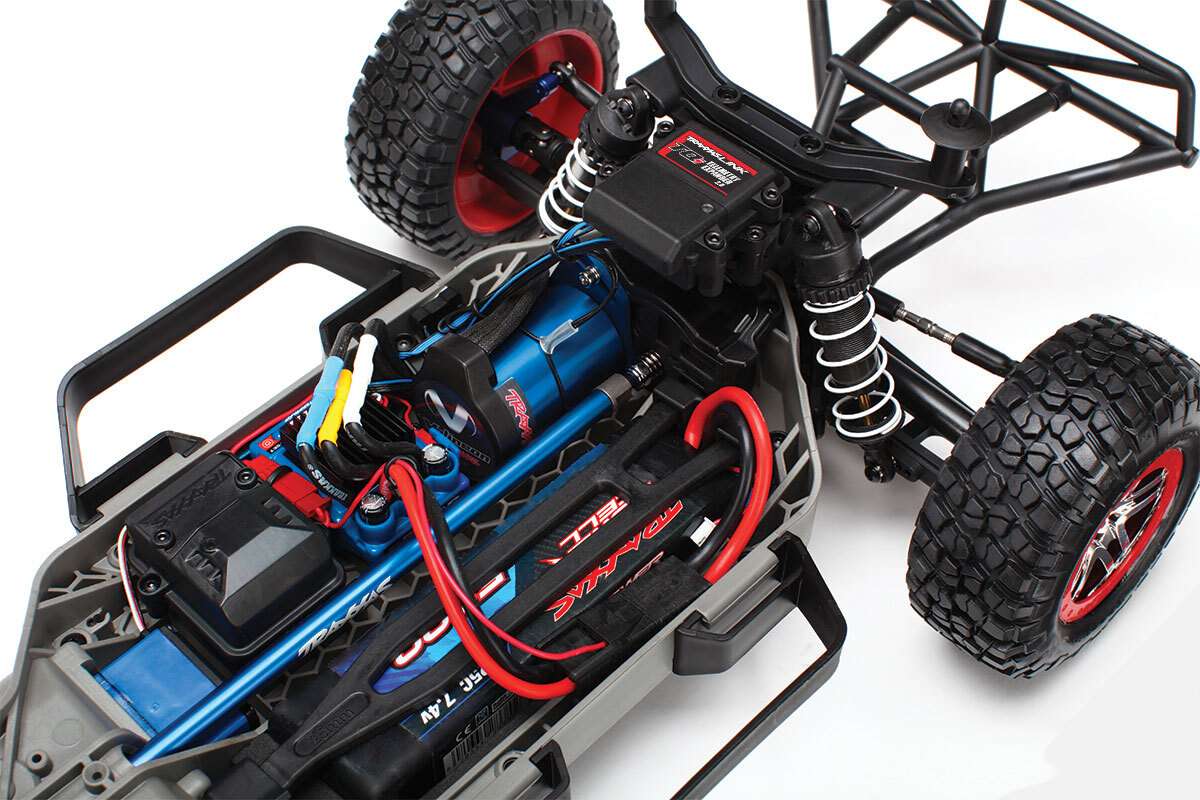

TQi Expander 2.0 (#6550X) with GPS Speed Telemetry Module 2.0 (#6551X) Installed (Three-Quarter View)
Standard telemetry sensors use your vehicle’s gear ratio and tire size to calculate speed based on RPM. This system works well for hard surfaces, but wheelspin on loose surfaces causes inaccurate speed readings. The Telemetry Expander 2.0 with GPS Module provides the most accurate speed data possible. The GPS Module 2.0 uses both GPS and GLONASS global positioning to deliver precise, real-time speed information via the Traxxas Link App on your TQi Radio System with Traxxas Link Wireless Module.



Easy to Install

The Telemetry Expander 2.0 is easy to install with custom, vehicle specific mounting kits from Traxxas. These mounting kits ensure that the Telemetry Expander 2.0 is secured in the model with a clean and rugged solution that delivers the durability you expect from Traxxas.

TELEMETRY EXPANDER MOUNTING KITS
Part#  Models
6554X Rustler, Bandit, Slash 2WD
6555 Slash 4X4, Stampede 4X4, 1/10 Rally, Jato
6556 XO-1, Summit*, T/E Maxx, Revo 3.3, Slayer Pro 4X4
6559 Spartan, M41
6561 TRX-4
  *Requires part #5632



Easy to Connect

Traxxas models equipped with the TQi radio system
The Telemetry Expander 2.0 connects directly to the TQi receiver using the supplied #6525 communication link cable.

X-Maxx, E-Revo, and Unlimited Desert Racer
Install the Telemetry Expander 2.0 and GPS Module for even more accurate speed measurements compared to the built in speed output from the VXL 6S and VXL 8S electronic speed controls. Plus, add the ability to install additional sensors to monitor parameters such as motor temperature. The Telemetry Expander connects directly to the VXL-6S or VXL-8S electronic speed control using the new Traxxas Data Link Cable #6566 (sold separately). Using the #6566 cable is a plug-and-play solution that conveniently eliminates the need to open the waterproof receiver box to add additional cables.



Vehicles equipped with the #6590 High Voltage power amplifier
The #6590 High Voltage Power supply is used for lighting accessories such as the #8485 off-road lighting set for the Unlimited Desert Racer. The #6550X Telemetry Expander can be conveniently connected directly to the #6590 high voltage power amplifier using the new #6565 Data Link Cable (sold separately). This provides a quick and easy plug-and-play connection without having to open the waterproof receiver box to add additional cables.



Traxxas TQi Telemetry Options

Add the optional Transmitter Phone Mount - Get it Here!

(TRA6553X)

SKU TRA6553X
Brand TRAXXAS
Shipping Weight 0.3000kg
